Adding Authorization to APIs on Kong API Gateway with Kubernetes and Helm Charts

Learn how to apply access control to protect APIs deployed behind Kong API Gateways. Install necessary plugins in your Gateway. Deploy SecureAuth's Kong Authorizer to enforce policies applied to your discovered APIs.

Kong Gateway Integration Using Kubernetes and Helm

To learn in details about Kong Gateway, SecureAuth Kong Plugin, Kong Authorizer, and how the integration works, get familiar with:

• Kong Gateway and Kong Authorizer Overview: This section provides an introduction to the Kong Gateway and explains the role of the Kong Authorizer within the API ecosystem.

• Adding External Authorization to Kong Gateway: A comprehensive diagram and detailed explanations of each component's role in the integration pattern.

• SecureAuth Kong Plugin: This documentation details what the SecureAuth Kong Plugin is and outlines how it functions within the Kong Gateway.

As part of this article, you will:

1. Either:

   • Add SecureAuth Kong Plugin to an already existing Kong Gateway deployment on Kubernetes

   or

   • Deploy Kong Gateway from scratch including SecureAuth Kong Plugin

2. Expose Services and Routes on your Kong Gateway.

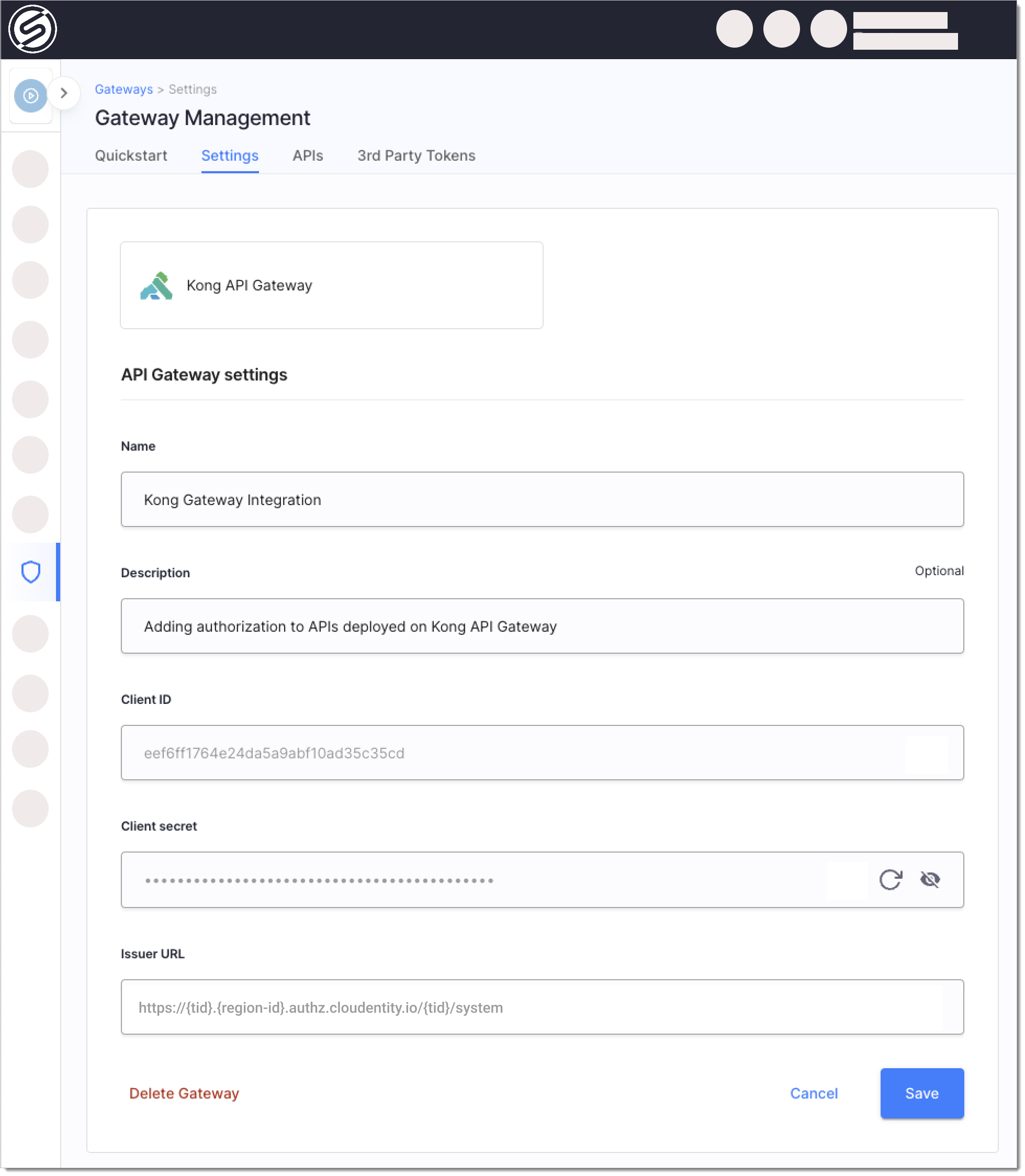

3. Create Kong Authorizer in SecureAuth and deploy it on Kubernetes.

4. Attach the SecureAuth Kong Plugin to your services.

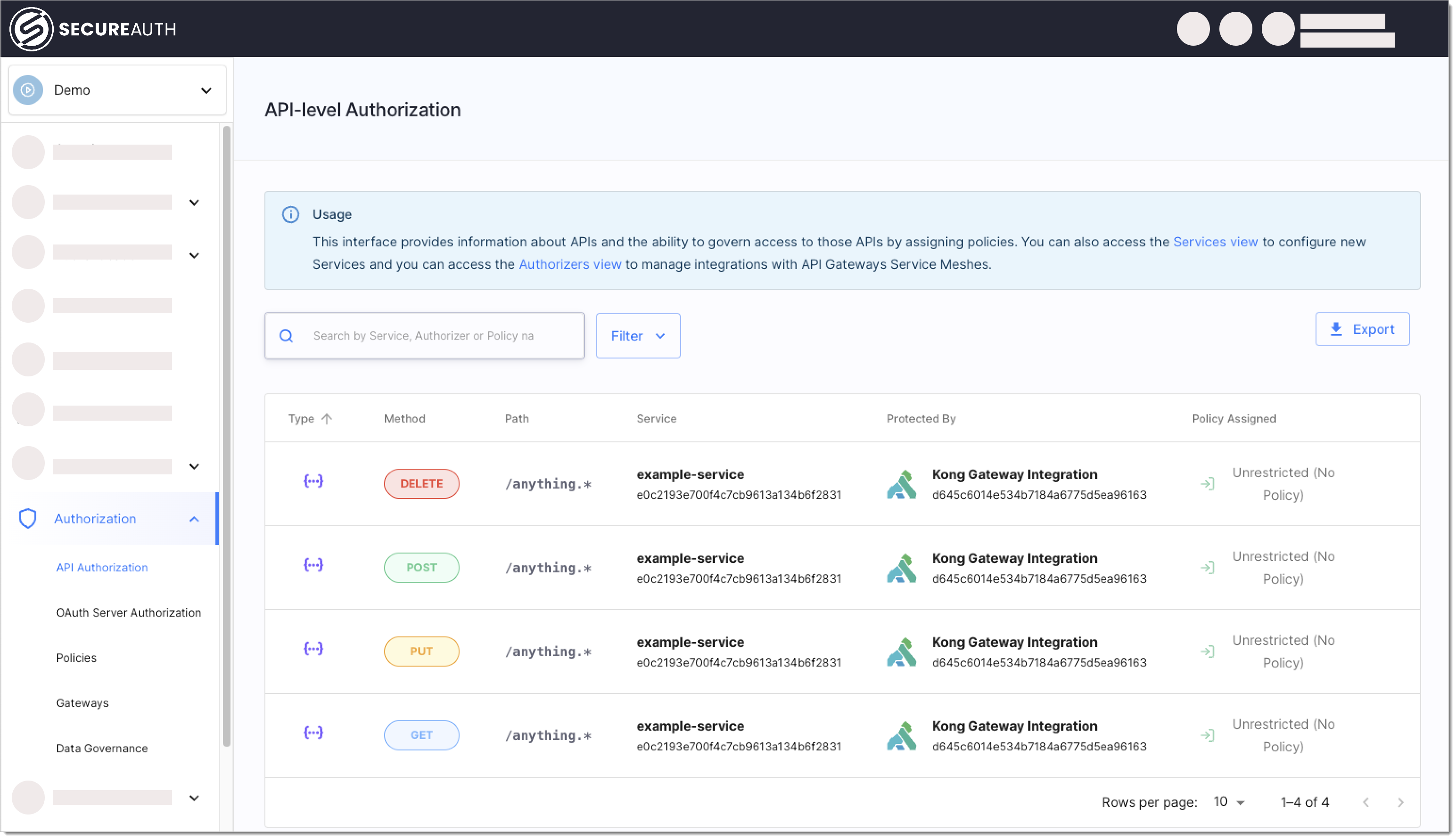

5. Assign authorization policies to APIs to test if access control is enforced.

Additionally, you will find here information on how to:

• Configure SecureAuth Kong Authorizer including How to Authenticate to Kong Admin API

• Attach SecureAuth Kong Plugin to Services on DB-Less Kong

• Exchange External Access Tokens at Kong Authorizer Level Using OAuth Token Exchange

Prerequisites

Setting Up k8s Cluster

You can set up a Kubernetes cluster locally using kind.

Go version below 1.17

GO111MODULE="on" go get sigs.k8s.io/kind@v0.20.0 && kind create cluster

Go version 1.17 or above

GO111MODULE="on" go install sigs.k8s.io/kind@v0.20.0 && kind create cluster

• Kubernetes version 1.19 or subsequent

• Kubernetes cluster is set up.

• Helm version 3.0 or subsequent

• Access to an SecureAuth SaaS tenant

How to Install SecureAuth Kong Plugin on Existing Kong Gateway Using Kubernetes and Helm

1. Add the following acp plugin and deployment configuration to your Kong Gateway's values.yaml file.

   initContainers:
   - name: plugin-setup
     image: kong:3.4
     command:
       [
         "sh",
         "-c",
         "cd /tmp && luarocks download kong-plugin-acp 1.2.0-1 && luarocks unpack kong-plugin-acp-* && mv kong-plugin-acp-*/lua/kong/plugins/acp/* /tmp/acp && ls -la /tmp/acp",
       ]
     volumeMounts:
       - name: "custom-kong-plugin-acp"
         mountPath: "/tmp/acp"
   userDefinedVolumes:
   - name: "custom-kong-plugin-acp"
     emptyDir: {}
   userDefinedVolumeMounts:
   - name: "custom-kong-plugin-acp"
     mountPath: "/usr/local/share/lua/5.1/kong/plugins/acp"

   Adjust the mountPath as needed to match your environment's plugin directory.

2. Apply changes to the configuration using the helm upgrade $release-name $chart-name -f $pathToValuesYamlFile command. See example below:

   helm upgrade kong kong/kong \
     --values kong-values.yaml \
     --namespace kong-system \
     --timeout 5m \
     --wait

How to Deploy Kong Gateway on K8s with Helm from Scratch Including SecureAuth Kong Plugin

In this section, we will install Kong Gateway on Kubernetes with Helm completely from scratch. We will include the SecureAuth Kong Plugin in our gateway deployment. To deploy the gateway, we will reference the official Kong Gateway documentation v.3.4 (latest as of 8th November 2023).

Keep in mind, based on whether you're deploying the OSS or Enterprise version, some steps in the documentation may vary.

1. Go through the following steps of the setup described in Install with Kong Gateway Using Helm:

   • Configure Kubectl - not required if you are running a single local cluster.

   • Create Kong Gateway Secrets

   • Install Cert Manager

2. Add the Kong Helm repository by executing:

   helm repo add kong https://charts.konghq.com
   helm repo update

3. Create a values.yaml file we will use to deploy Kong Gateway. For testing purposes, we recommend using the below setup.

   The below configuration is based on the values.yaml file defined in official Kong Gateway documentation v.3.4 (latest as of 8th November 2023). It includes the SecureAuth Kong Plugin installation.

   If you wish to prepare any other configuration, remember to add SecureAuth Kong Plugin to the gateway as explained in the How to Install the SecureAuth Kong Plugin on an Existing Kong Gateway Using Kubernetes and Helm section.

   admin:
     annotations:
       konghq.com/protocol: https
     enabled: true
     http:
       enabled: false
     ingress:
       annotations:
         konghq.com/https-redirect-status-code: "301"
         konghq.com/protocols: https
         konghq.com/strip-path: "true"
         nginx.ingress.kubernetes.io/app-root: /
         nginx.ingress.kubernetes.io/backend-protocol: HTTPS
         nginx.ingress.kubernetes.io/permanent-redirect-code: "301"
       enabled: true
       hostname: kong.127-0-0-1.nip.io
       path: /api
       tls: quickstart-kong-admin-cert
     tls:
       containerPort: 8444
       enabled: true
       parameters:
       - http2
       servicePort: 8444
     type: ClusterIP
   affinity:
     podAntiAffinity:
       preferredDuringSchedulingIgnoredDuringExecution:
       - podAffinityTerm:
           labelSelector:
             matchExpressions:
             - key: app.kubernetes.io/instance
               operator: In
               values:
               - dataplane
           topologyKey: kubernetes.io/hostname
         weight: 100
   certificates:
     enabled: true
     issuer: quickstart-kong-selfsigned-issuer
     cluster:
       enabled: true
     admin:
       enabled: true
       commonName: kong.127-0-0-1.nip.io
     portal:
       enabled: true
       commonName: developer.127-0-0-1.nip.io
     proxy:
       enabled: true
       commonName: 127-0-0-1.nip.io
       dnsNames:
       - '*.127-0-0-1.nip.io'
   cluster:
     enabled: true
     labels:
       konghq.com/service: cluster
     tls:
       containerPort: 8005
       enabled: true
       servicePort: 8005
     type: ClusterIP
   clustertelemetry:
     enabled: true
     tls:
       containerPort: 8006
       enabled: true
       servicePort: 8006
       type: ClusterIP
   deployment:
     kong:
       daemonset: false
       enabled: true
     initContainers:
     - name: plugin-setup
       image: kong:3.4
       command:
         [
           "sh",
           "-c",
           "cd /tmp && luarocks download kong-plugin-acp 1.2.0-1 && luarocks unpack kong-plugin-acp-* && mv kong-plugin-acp-*/lua/kong/plugins/acp/* /tmp/acp && ls -la /tmp/acp",
         ]
       volumeMounts:
         - name: "custom-kong-plugin-acp"
           mountPath: "/tmp/acp"
     userDefinedVolumes:
     - name: "custom-kong-plugin-acp"
       emptyDir: {}
     userDefinedVolumeMounts:
     - name: "custom-kong-plugin-acp"
       mountPath: "/usr/local/share/lua/5.1/kong/plugins/acp"
   enterprise:
     enabled: true
     license_secret: kong-enterprise-license
     portal:
       enabled: true
     rbac:
       admin_api_auth: basic-auth
       admin_gui_auth_conf_secret: kong-config-secret
       enabled: true
       session_conf_secret: kong-config-secret
     smtp:
       enabled: false
     vitals:
       enabled: true
   env:
     admin_access_log: /dev/stdout
     admin_gui_api_url: https://kong.127-0-0-1.nip.io/api
     admin_error_log: /dev/stdout
     admin_gui_access_log: /dev/stdout
     admin_gui_error_log: /dev/stdout
     admin_gui_host: kong.127-0-0-1.nip.io
     admin_gui_protocol: https
     admin_gui_url: https://kong.127-0-0-1.nip.io/
     cluster_data_plane_purge_delay: 60
     cluster_listen: 0.0.0.0:8005
     cluster_telemetry_listen: 0.0.0.0:8006
     database: postgres
     log_level: debug
     lua_package_path: /opt/?.lua;;
     nginx_worker_processes: "2"
     password:
       valueFrom:
         secretKeyRef:
           key: kong_admin_password
           name: kong-config-secret
     pg_database: kong
     pg_host:
       valueFrom:
         secretKeyRef:
           key: pg_host
           name: kong-config-secret
     pg_ssl: "off"
     pg_ssl_verify: "off"
     pg_user: kong
     plugins: bundled,openid-connect,acp
     portal: true
     portal_api_access_log: /dev/stdout
     portal_api_error_log: /dev/stdout
     portal_api_url: https://developer.127-0-0-1.nip.io/api
     portal_auth: basic-auth
     portal_cors_origins: '*'
     portal_gui_access_log: /dev/stdout
     portal_gui_error_log: /dev/stdout
     portal_gui_host: developer.127-0-0-1.nip.io
     portal_gui_protocol: https
     portal_gui_url: https://developer.127-0-0-1.nip.io/
     portal_session_conf:
       valueFrom:
         secretKeyRef:
           key: portal_session_conf
           name: kong-config-secret
     prefix: /kong_prefix/
     proxy_access_log: /dev/stdout
     proxy_error_log: /dev/stdout
     proxy_stream_access_log: /dev/stdout
     proxy_stream_error_log: /dev/stdout
     smtp_mock: "on"
     status_listen: 0.0.0.0:8100
     trusted_ips: 0.0.0.0/0,::/0
     vitals: true
   extraLabels:
     konghq.com/component: quickstart
   image:
     repository: kong/kong-gateway
     tag: "3.4"
   ingressController:
     enabled: true
     env:
       kong_admin_filter_tag: ingress_controller_default
       kong_admin_tls_skip_verify: true
       kong_admin_token:
         valueFrom:
           secretKeyRef:
             key: password
             name: kong-config-secret
       kong_admin_url: https://localhost:8444
       kong_workspace: default
       publish_service: kong/quickstart-kong-proxy
     image:
       repository: docker.io/kong/kubernetes-ingress-controller
       tag: "2.10"
     ingressClass: default
     installCRDs: false
   manager:
     annotations:
       konghq.com/protocol: https
     enabled: true
     http:
       containerPort: 8002
       enabled: false
       servicePort: 8002
     ingress:
       annotations:
         konghq.com/https-redirect-status-code: "301"
         nginx.ingress.kubernetes.io/backend-protocol: HTTPS
       ingressClassName: kong
       enabled: true
       hostname: kong.127-0-0-1.nip.io
       path: /
       tls: quickstart-kong-admin-cert
     tls:
       containerPort: 8445
       enabled: true
       parameters:
       - http2
       servicePort: 8445
     type: ClusterIP
   migrations:
     enabled: true
     postUpgrade: true
     preUpgrade: true
   namespace: kong
   podAnnotations:
     kuma.io/gateway: enabled
   portal:
     annotations:
       konghq.com/protocol: https
     enabled: true
     http:
       containerPort: 8003
       enabled: false
       servicePort: 8003
     ingress:
       annotations:
         konghq.com/https-redirect-status-code: "301"
         konghq.com/protocols: https
         konghq.com/strip-path: "false"
       ingressClassName: kong
       enabled: true
       hostname: developer.127-0-0-1.nip.io
       path: /
       tls: quickstart-kong-portal-cert
     tls:
       containerPort: 8446
       enabled: true
       parameters:
       - http2
       servicePort: 8446
     type: ClusterIP
   portalapi:
     annotations:
       konghq.com/protocol: https
     enabled: true
     http:
       enabled: false
     ingress:
       annotations:
         konghq.com/https-redirect-status-code: "301"
         konghq.com/protocols: https
         konghq.com/strip-path: "true"
         nginx.ingress.kubernetes.io/app-root: /
       ingressClassName: kong
       enabled: true
       hostname: developer.127-0-0-1.nip.io
       path: /api
       tls: quickstart-kong-portal-cert
     tls:
       containerPort: 8447
       enabled: true
       parameters:
       - http2
       servicePort: 8447
     type: ClusterIP
   postgresql:
     enabled: true
     auth:
       database: kong
       username: kong
   proxy:
     annotations:
       prometheus.io/port: "9542"
       prometheus.io/scrape: "true"
     enabled: true
     http:
       containerPort: 8080
       enabled: true
       hostPort: 80
     ingress:
       enabled: false
     labels:
       enable-metrics: true
     tls:
       containerPort: 8443
       enabled: true
       hostPort: 443
     type: LoadBalancer
   replicaCount: 1
   secretVolumes: []
   status:
     enabled: true
     http:
       containerPort: 8100
       enabled: true
     tls:
       containerPort: 8543
       enabled: false

4. Install Kong Gateway by adjusting and executing the following command:

   helm install quickstart kong/kong --namespace kong --values $path-to-your-values-yaml

5. Wait for all pods to be in the Running and Completed states:

   kubectl get po --namespace kong -w

Your Kong Gateway is up and running. However, you need to route your local traffic to your Kubernetes cluster.

In this article, we will employ Kubernetes Port-Forwarding to access services deployed in the cluster. This approach is suitable for our current context and allows us to interact with the services without the need to configure NodePorts or Ingress Controllers, which are beyond the scope of this article.

In separate terminal shells, forward the following ports:

kubectl port-forward -n kong svc/quickstart-kong-proxy 8000:80 # Forward Kong Proxy
kubectl port-forward -n kong svc/quickstart-kong-admin 8444:8444 # Forward Kong Admin API
kubectl port-forward -n kong svc/quickstart-kong-manager 8445:8445 # Forward Kong Manager

Note that depending on your license and setup, Kong Manager or Kong Admin APIs may be not fully accessible.

Expose Services and Routes on Kong Gateway

For most up-to-date information on how to expose services and routes on Kong Gateway, see official Kong documentation:

• Exposing Services and Routes using Kong Manager

• Managing Services and Managing Routes using Kong Admin APIs.

For the purpose of this article, we will quickly deploy a sample httpbin HTTP request and response service and expose it using Kong Gateway Admin APIs.

Deploying and Exposing Sample Service with Routes on Kong Gateway

1. Execute the following command in your terminal to deploy the httpbin service on your Kubernetes cluster:

   kubectl apply -f - <<EOF
   apiVersion: v1
   kind: ServiceAccount
   metadata:
     name: httpbin
   ---
   apiVersion: v1
   kind: Service
   metadata:
     name: httpbin
   spec:
     selector:
       app: httpbin
     ports:
     - port: 80
       name: http
   ---
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: httpbin
     labels:
       app: httpbin
     annotations:
       services.k8s.cloudentity.com/spec-url: "http://httpbin.org/spec.json"
   spec:
     replicas: 1
     selector:
       matchLabels:
         app: httpbin
     template:
       metadata:
         labels:
           app: httpbin
       spec:
         serviceAccountName: httpbin
         containers:
         - name: httpbin
           image: "kennethreitz/httpbin"
           ports:
           - containerPort: 80
             name: http
   EOF

2. Forward the port of the deployed service using the below command:

   kubectl port-forward -n default svc/httpbin 8888:80

   You can confirm everything works by executing:

   curl http://localhost:8888/anything/anywhere -v

   You should receive the HTTP/1.1 200 OK response status.

3. Call the Add Service Kong Admin API:

   curl -i -X POST -k \
    --url https://localhost:8444/services/ \
    --data 'name=example-service' \
    --data 'url=http://httpbin.default.svc:80'

4. Call the Add Route Kong Admin API:

   curl -i -X POST -k \
    --url https://localhost:8444/services/example-service/routes \
    --data 'paths[]=/anything' \
    --data-urlencode 'methods[]=GET' \
    --data-urlencode 'methods[]=PUT' \
    --data-urlencode 'methods[]=POST' \
    --data-urlencode 'methods[]=DELETE' \
    --data 'name=anything' \
    --data 'strip_path=false'

5. Verify if the API can be successfully called through the Kong Gateway:

   curl http://localhost:8000/anything/anywhere -v

   You should receive the HTTP/1.1 200 OK response status.

Your service is up and running. Now it is time to apply access control with SecureAuth.

Add External Authorization to APIs on Kong Gateway

Create Kong Authorizer in SecureAuth

1. In your SecureAuth tenant, go to the workspace of your choice.

2. Select Authorization > Gateways > CREATE GATEWAY > Kong.

3. Provide a name and a description for your Kong Authorizer.

4. Optionally, enable the Create and bind services automatically check box.

   tip

   When enabled, all services protected by your Kong Authorizer instance are discovered and added to the SecureAuth service list automatically when the Kong authorizer is connected to SecureAuth. Otherwise, you need to add them manually.

Your Kong Authorizer is now set up and ready for deployment.

In the Settings tab, you'll find essential credentials such as client ID, client secret, and issuer URL. These credentials are automatically generated by SecureAuth for the authorizer's client application within the System workspace of your tenant. They are vital for authenticating with the SecureAuth authorization server, which is a necessary step for operations like retrieving policy definitions.

Deploy Kong Authorizer with Helm Charts

SecureAuth provides a dedicated Helm Chart for deploying the Kong Authorizer.

1. Run the command below to create a Kong Authorizer service with the following parameters:

   • Service name: kong-authorizer

   • Namespace: cl-kong-authorizer

   • ${CLIENT_ID}, ${CLIENT_SECRET}, ${ISSUER_URL} - Authorizer Client ID, Client Secret, and Issuer URL which you can retrieve from SecureAuth having created the authorizer.

     The issuerURL argument should point to the issuer URL of your Kong Authorizer client application created within the System workspace of your tenant. You can find the issuer URL in the Settings view for your authorizer.

     If you are using a vanity domain for your SecureAuth tenant and it is impossible to retrieve the tenant's and server's identifier from the URL, provide values for the tenantID and serverID parameters in addition to issuerURL.

   • {KONG_ADMIN_URL} - Kong Admin API URL. If you deployed Kong Gateway using the instructions from the How to Deploy Kong Gateway on K8s with Helm from Scratch Including SecureAuth Kong Plugin section, the URL is https://quickstart-kong-admin.kong.svc:8444

   Example without vanity domains:

   helm repo add acp https://charts.cloudentity.io && helm repo update
   helm upgrade --install kong-authorizer acp/kong-authorizer \
     --set clientCredentials.clientID=${CLIENT_ID} \
     --set clientCredentials.clientSecret=${CLIENT_SECRET} \
     --set issuerURL=${ISSUER_URL} \
     --set kongAdminURL=${KONG_ADMIN_URL} \
     --namespace cl-kong-authorizer \
     --create-namespace

   Example with vanity domains:

   helm repo add acp https://charts.cloudentity.io && helm repo update
   helm upgrade --install kong-authorizer acp/kong-authorizer \
     --set clientCredentials.clientID=${CLIENT_ID} \
     --set clientCredentials.clientSecret=${CLIENT_SECRET} \
     --set issuerURL=${VANITY_ISSUER_URL} \
     --set tenantID=${TENANT_ID} \
     --set serverID=${SERVER_ID} \
     --namespace cl-kong-authorizer \
     --create-namespace

2. Wait for the Kong Authorizer pod to be in the running status:

   kubectl get po --namespace cl-kong-authorizer -w

Your authorizer is up and running. If you enabled the Create and bind services automatically option, the authorizer discovers the APIs deployed on Kong Gateway, pushes them to SecureAuth platform, and automatically creates a Service.

Attach SecureAuth Kong Plugin to Service On Kong Gateway

To attach SecureAuth Kong Plugin to the service deployed on Kong Gateway, use the Add Plugin Kong Admin API or follow the instruction from the Attaching SecureAuth Kong Plugin to Service in DB-Less Kong if you are running Kong without a database.

Adjust the variables according to your deployment setup and execute the following curl:

curl -sSk -X POST {kong-admin-api-url}/services/{service-name}/plugins \
     --data 'name=acp' \
     --data 'config.api_group_id={api-group-id}' \
     --data 'config.auth_url={kong-authorizer-url}/authorize' \
     --data 'config.ssl_verify=false'

See example for the service we deployed in the Deploying and Exposing Sample Service with Routes on Kong Gateway section.

curl -sSk -X POST https://localhost:8444/services/example-service/plugins \
     --data 'name=acp' \
     --data 'config.api_group_id=example-service' \
     --data 'config.auth_url=https://kong-authorizer.cl-kong-authorizer.svc:9003/authorize' \
     --data 'config.ssl_verify=false'

In the curl example above:

• We add acp plugin to the example-service we deployed in the Deploying and Exposing Sample Service with Routes on Kong Gateway section.

• We configure the api_group_id as example-service -- same as the API's underlying service in SecureAuth. If you did not enable the bind and create service option while creating the authorizer and connected APIs manually to a service, provide its name here.

• We define the authorizer's /authorize endpoint for the plugin as https://kong-authorizer.cl-kong-authorizer.svc:9003/authorize.

• We disable certificate verification during API discovery using the ssl_verify setting.

You should get a response similar to the following:

{
   "name":"acp",
   "config":{
      "auth_url":"https://kong-authorizer.cl-kong-authorizer.svc:9003/authorize",
      "ssl_verify":false,
      "api_group_id":"httpbin-service"
   },
   "ordering":null,
   "protocols":[
      "grpc",
      "grpcs",
      "http",
      "https"
   ],
   "tags":null,
   "created_at":1699523296,
   "service":{
      "id":"9954e54f-005a-4aed-8907-fa1e67755811"
   },
   "route":null,
   "consumer_group":null,
   "updated_at":1699523296,
   "instance_name":null,
   "enabled":true,
   "consumer":null,
   "id":"4f9b110f-abb7-44f2-ac04-22c9445b4cbc"
}

Attaching SecureAuth Kong Plugin to Services in DB-Less Kong

To attach the SecureAuth Kong Plugin in a DB-less Kong Gateway setup, add plugins declaration with the SecureAuth Kong Plugin configuration as part of the config setting. See example:

dblessConfig:
  configMap: ""
  config: |
    _format_version: "1.1"
    plugins:
      - name: acp
        config:
          api_group_id: example-service
          auth_url: https://kong-authorizer.cl-kong-authorizer.svc:9003/authorize
          ssl_verify: false
    services:
      - name: example-service
        url: http://httpbin.default.svc:80
        routes:
          - name: anything
            paths:
              - "/anything"
            methods:
              - GET
              - POST
              - DELETE
              - PUT
            strip_path: false

Note the api_group_id being set to the same value as the service name.

Verify Access Control and Attached SecureAuth Kong Plugin

1. Again call the API deployed on Kong Gateway and discovered by the Kong Authorizer.

   curl http://localhost:8000/anything/anywhere -v

   You should receive the HTTP/1.1 200 OK response.

2. Verify the logs for the authorizer by executing:

   kubectl logs --since=1h <kong-authorizer-pod-name> -n <kong-authorizer-namespace>

   Example:

   kubectl logs --since=1h kong-authorizer-wg9lp -n cl-kong-authorizer

   You should see the log similar to the below. It means that the authorizer was able to successfully validate the request and allowed access.

   time="2023-11-09T09:59:22Z" level=info msg="request validated" failures="[]" group=example-service method=GET output="map[]" path=/anything/anywhere rule="Rule[method=GET, path=/anything.*, policyName=, injections=[]]" status=AUTHORIZED token_exchange="{false false }"

3. In SecureAuth, go to Authorization > API Authorization.

4. Select Unrestricted (No Policy) next to one of the discovered APIs you called before.

5. Select the Block API policy to block all requests coming to your API.

   The authorizer fetches the policy definitions on a configured interval. Depending on your configuration (default - 1 minute) it may take some time for the policy to be fetched by the authorizer.

6. Call the API again.

   Example:

   curl http://localhost:8000/anything/anywhere -v

   You should get the HTTP/1.1 403 Forbidden response.

7. Verify authorizer's logs again:

   kubectl logs --since=1h <kong-authorizer-pod-name> -n <kong-authorizer-namespace>

   Example:

   kubectl logs --since=1h kong-authorizer-wg9lp -n cl-kong-authorizer

   You should see the log similar to the below. It means that the authorizer blocked the request as defined by the Block API policy.

   time="2023-11-09T10:16:31Z" level=info msg="request validated" failures="[validator:\"false\" message:\"false\" details:\"false\"]" group=example-service method=GET output="map[]" path=/anything/anywhere rule="Rule[method=GET, path=/anything.*, policyName=block_demo_api, injections=[]]" status=NOT_AUTHORIZED token_exchange="{false false }"

8. Unassign the Block API policy from the API for cleanup.

Configure Kong Authorizer

1. Reference Kong Authorizer Configuration.

2. Add changes to your Kong Authorizer's values.yaml file according to the Kong Authorizer values.yaml Reference.

   For most up to date reference, use the helm show values acp/kong-authorizer command in your terminal.

   If possible, use top-level values.yaml settings. If a setting you wish to configure is not available top-level

3. Apply the changes to your deployment:

   helm upgrade --install kong-authorizer acp/kong-authorizer \
     --namespace ${KONG_AUTHORIZER_NAMESPACE} \
     --values ${KONG_AUTHORIZER_CONFIG}

   Example:

   helm upgrade --install kong-authorizer acp/kong-authorizer \
     --namespace cl-kong-authorizer \
     --values values.yaml

Kong Authorizer Configuration Reference

# acp
acp:
    reload_interval: 1m0s # reload interval
    reload_timeout: 30s # reload configuration timeout
    issuer_url: https://localhost:8443/sample/system # issuer url
    client_id: bqesdrc4m4co2s81mpu0 # client id
    client_secret: LH6mAb6PNljvjYMIF-A5RP2bElA5a5bnQah8sG0fsLA # client secret
    tenant_id: "" # tenant id
    server_id: "" # server id
# http client
http_client:
    timeout: 10s # http client timeout
    retry_wait_min: 0s # minimum time to wait between retries
    retry_wait_max: 0s # maximum time to wait between retries
    retry_max: 0 # maximum number of retries
    root_ca: "" # root ca that this client should trust (defaults to system root ca)
    insecure_skip_verify: false # disable cert verification
    disable_follow_redirects: false # disable follow redirects
    disable_retry: true # disable retry
# metrics
metrics:
    enabled: false # enable metrics endpoint
    port: 9000 # metrics endpoint port
# analytics
analytics:
    enabled: true # when enabled, events are sent to audit log
    # event format
    event_format:
        include_policy_output: false # when enabled, policy evaluation output is sent to audit log
    # sampling
    sampling:
        probability: 1 # Probability of an event to be published (0.0-1.0)
        batch_inverval: 1s # Max duration to wait for a batch to publish
        batch_limit: 100 # Max number of events in a batch
        limit: 5 # Max number of batches per second to be published
        timeout: 5s # Timeout for a single batch to send
        workers: 8 # Number of sending workers
# cache
cache:
    ttl: 10s # ttl
    max_size: 100 # max size
# logging config
logging:
    level: info # log level severity
# token echange config
token_exchange:
    enabled: false # enable token exchange
    # cache
    cache:
        ttl: 1m0s # ttl
        max_size: 1000 # max size
    # inject config (supported only for istio authorizer)
    inject:
        mode: "" # Defines what token should be sent to the target service when token is exchanged
        # headers config
        headers:
            exchanged_token: "" # Defines the name of the header that contains an exchanged token.
            original_token: "" # Defines the name of the header that contains an original token.
            strip_bearer: false # Allows to strip the bearer prefix in headers
# enforcement config
enforcement:
    allow_unknown: false # allow requests with no matching rule
# discovery config
discovery:
    enabled: true # when true, API discovery is enabled
    timeout: 10s # discovery process timeout
    interval: 30s # how often discovery is performed
# http server
http_server:
    port: 9003 # http port
    dangerous_disable_tls: false # diables TLS
    # certificate configuration
    certificate:
        password: "" # key passphrase
        cert_path: "" # path to the certificate PEM file
        key_path: "" # path to the key PEM file
        cert: "" # base64 encoded cert PEM
        key: "" # base64 encoded key PEM
        generated_key_type: ecdsa # type for generated key if cert and key are not provided (rsa or ecda)
    client_auth_type: 0 # client auth type
# kong
kong:
    admin_url: "" # kong admin url indicates the Kong Admin API
    admin_token: "" # kong admin token for RBAC authentication to Kong Admin API
    admin_username: "" # kong admin username for Basic Auth to Kong Admin API
    admin_password: "" # kong admin password for Basic Auth to Kong Admin API
    admin_client_id: "" # kong admin client ID for OAuth2 authentication to the Kong Admin API
    admin_client_secret: "" # kong admin client secret for OAuth2 authentication to the Kong Admin API
    admin_issuer_url: "" # kong admin issuer url for OAuth2 authentication to the Kong Admin API
    # http client used to access the Kong Admin API
    http_client:
        timeout: 0s # http client timeout
        retry_wait_min: 0s # minimum time to wait between retries
        retry_wait_max: 0s # maximum time to wait between retries
        retry_max: 0 # maximum number of retries
        root_ca: "" # root ca that this client should trust (defaults to system root ca)
        insecure_skip_verify: true # disable cert verification
        disable_follow_redirects: false # disable follow redirects
        disable_retry: false # disable retry

Kong Authorizer values.yaml Reference

For most up to date reference, use the helm show values acp/kong-authorizer command in your terminal.

## kong-authorizer image parameters
##
image:
  ## Image repository
  ##
  repository: docker.cloudentity.io/kong-authorizer

  ## Image pull policy
  ##
  pullPolicy: IfNotPresent

  ## Image tag (immutable tags are recommended, default is the chart appVersion)
  ##
  tag: ""

## Number of desired pod replicas if deployAsDaemonSet set to false.
##
replicaCount: 1

## Autoscaling parameters if deployAsDaemonSet set to false.
##
autoscaling:
  ## Enable autoscaling
  ##
  enabled: false

  ## Define mix replica count
  ##
  # minReplicas: 0

  ## Define max replica count
  ##
  # maxReplicas: 1

  ## The average CPU usage of a all pods in a deployment
  ##
  # targetCPUUtilizationPercentage: ""

  ## The average memory usage of a all pods in a deployment
  ##
  # targetMemoryUtilizationPercentage: ""

  ## Custom scaling behavior
  ##
  #  behavior: {}

## A map with annotations
##
podAnnotations: []

## kong-authorizer image registry secret names as an array
##
imagePullSecrets:
  - name: docker.cloudentity.io

## Pod security context
##
podSecurityContext:
  fsGroup: 1000
  runAsGroup: 1000
  runAsNonRoot: true
  runAsUser: 1000
  seccompProfile:
    type: RuntimeDefault

## Container security context
##
containerSecurityContext:
  readOnlyRootFilesystem: true
  allowPrivilegeEscalation: false
  capabilities:
    drop:
      - ALL
  seccompProfile:
    type: RuntimeDefault

## String to fully override kong-authorizer.fullname
##
# fullnameOverride: ""

## Service account to use by the kong-authorizer
##
serviceAccount:
  ## Specifies whether a service account should be created
  ##
  create: true
  ## Annotations to add to the service account
  ##
  annotations: {}
  ## The name of the service account to use.
  ## If not set and create is true, a name is generated using the fullname template
  ##
  name: ""

## Issuer URL of your tenant's ACP system workspace
##
## When using kong-authorizer in single-tenant mode, this should point
## to the system workspace of your tenant.
## i.e. "http://connect.secureauth.com/yourtenant/system"
##
## If you're using multi-tenant kong-authorizer this should point
## to the `system` workspace of your `system` tenant.
## i.e. "http://yourdomain.com/system/system"
##
issuerURL: "https://acp.acp-system:8443/default/system"

## Vanity Domain
## If the issuerURL uses a vanity domain, you will need to specify the tenantID,
## and if the domain is per-server, then you must also specify the serverID.
##
tenantID: ""
serverID: ""

## Pod resources definition
resources: {}
  # requests:
  #   cpu: 10m
  #   memory: 48Mi
  # limits:
  #   cpu: 100m
  #   memory: 96Mi

## Credentials for your ACP kong-authorizer
##
##
clientCredentials:
  ## Default dummy values
  ## You can provide credentials generated by ACP for your kong gateway.
  ##
  clientID: "c7c7mgmvd3ibf6k124n0"
  clientSecret: "TuIEmSWHtU-0ftOO7445nccomqu71V4Wcv4SW3fzviM"

## kong-authorizer config file from secret
##
secretConfig:
  ## Specifies whether a kubernetes secret should be created.
  ## For production setup, please create the secret (ideally encrypted) manually
  ## parameter to integrate with kong-authorizer
  ##
  create: true

  ## The name of the client secret to use
  ## If not set and create is true, a name is generated using the fullname template
  ##
  # name: ""

## node selector for pod assignment
##
## nodeSelector: {}

## Affinity for pod assignment
##
affinity: {}
  # nodeAffinity:
  #   requiredDuringSchedulingIgnoredDuringExecution:
  #   nodeSelectorTerms:
  #     - matchExpressions:
  #         - key: authorizer
  #           operator: In
  #           values:
  #             - "true"

## Tolerations for pod assignment
##
tolerations: []
#- key: authorizer
#  value: "true"
#  effect: NoSchedule

## Kong-authorizer pod topology spread constraints
##
# topologySpreadConstraints: {}

## Logging configuration
##
logging:
  ## log level
  ##
  level: info

## Authorizer discovery configuration
##
discovery:
  ##  When true, API discovery is enabled
  ##
  enabled: true

## Enforcement configuration
##
enforcement:
  ## allow requests with no matching rule
  ##
  allowUnknown: false

## Kong configuration
##
kong:
  ## Admin portal URL
  admin_url: http://kong-kong-admin.kong-system:8001

service:
  ## kong-authorizer service type
  ##
  type: ClusterIP

  ## kong-authorizer service HTTP port
  ##
  port: 9003
  name: http
  # appProtocol: https

ingress:
  ## Enables the Ingress for kong-authorizer.
  ## This is only needed when Kong runs outside the cluster.
  ##
  enabled: false

  ## Ingress class name
  # className: nginx

  ## Ingress annotations
  ##
  # annotations:

  ## Ingress hostnames with paths
  ##
  hosts:
    - host: kong-authorizer.kong-authorizer
      paths:
        - path: /authorize

  ## Ingress TLS configuration
  ## Secrets must be manually created in the namespace
  tls: []
  #  - secretName: kong-authorizer-tls
  #    hosts:
  #      - kong.domain.com

## Token exchange settings
##
tokenExchange:
  ## Enable token exchange (temporary until acp 2.0 is released)
  ##
  enabled: false

  ## Token exchange inject settings
  inject:
    ## Inject mode, defines what token should be send to the target service
    ## One of: InjectOriginalToken, InjectExchangedToken, InjectBothTokens
    ##
    mode: "InjectExchangedToken"

    headers:
      ## Original token header name
      ##
      originalToken: ""

      ## Exchanged token header name
      ##
      exchangedToken: "Authorization"

      ## strip bearer token
      ##
      stripBearer: false

## ACP http client configuration
##
# httpClient:
#   ## Set the ca.crt to the CA certificate used by ACP.
#   ## If you're exposing ACP with your own custom (not publicly trusted) certificates, Kong Authorizer needs to trust them.
#   ##
#   rootCa: |
#     -----BEGIN CERTIFICATE-----
#     -----END CERTIFICATE-----

## Additional kong-authorizer ConfigMap entries
## The data should match kong-authorizer configuration options
## https://docs.authorization.cloudentity.com/guides/developer/protect/kong/authz_config_reference/
##
# extraConfig: {}

Authenticating Kong Authorizer Requests to Kong Admin API

While discovering services, Kong Authorizer may need to authenticate to Kong Gateway Admin APIs using one of the below methods depending on your gateway configuration.

RBAC Authentication
To authenticate when the Kong Admin API is secured by RBAC , supply the RBAC user token via the environment variable KONG_ADMIN_TOKEN, or the YAML field kong.admin_token:

Licensed Enterprise users only

RBAC is only available for licensed Kong Gateway users. It's not possible to enable RBAC on a free Kong Enterprise version or the Open Source version.

kong:
  admin_url: https://quickstart-kong-admin.kong.svc:8444
  admin_token: vajeOlkbsn0q0VD9qw9B3nHYOErgY7b8

Basic Authentication
To authenticate when the Kong Admin API is secured by the Kong basic-auth plugin , specify the environment variables KONG_ADMIN_USERNAME and KONG_ADMIN_PASSSWORD, or specify them via the YAML configuration:

kong:
  admin_url: https://quickstart-kong-admin.kong.svc:8444
  admin_username: kong-admin
  admin_password: sesame

As a result, when the authorizer tries to access the Kong API without credentials, the request fails.

{
  "message": "Unauthorized"
}

OAuth2 Authentication
To authenticate when the Kong Admin API is secured by the Kong oauth2 plugin , specify the environment variables KONG_ADMIN_CLIENT_ID, KONG_ADMIN_CLIENT_SECRET, and KONG_ADMIN_ISSUER_URL, or specify them via the YAML configuration:

kong:
  admin_url: https://quickstart-kong-admin.kong.svc:8444
  admin_client_id: kong-authorizer-id
  admin_client_secret: kong-authorizer-secret
  admin_issuer_url: https://kong:8443/admin-api

As a result, when the authorizer tries to access the Kong API without the access token, the request fails.

{
  "error": "invalid_request",
  "error_description": "The access token is missing"
}

Exchange External Tokens in Kong Authorizer

SecureAuth Kong Authorizer is capable of exchanging external access tokens to internal access tokens issued by SecureAuth. The token exchange takes place as defined in the OAuth Token Exchange Extension.

Prerequisites

• Kong Gateway Installed with SecureAuth Kong Plugin

• Services and Routes Deployed on Kong Gateway

• Kong Authorizer created and deployed

• SecureAuth Kong Plugin is Attached to Exposed Services

• You were able to successfully verify access control and attached SecureAuth Kong Plugin

Configure Mock External Token Service in SecureAuth

To simulate an external IDP, we will use a separate workspace as an external token service.

In a real world scenario, you would skip this step - instead, you would just add the Third Party Token Service as a trusted IDP in the workspace where the Kong Gateway and Authorizer are connected.

1. In your tenant, add a workspace with Demo Application enabled and with mock user added to quickly get external access tokens.

   You can use any of the available workspace types, but we recommend creating a Demo Environment to simplify the procedure. You may skip connecting developer portals and developer pools.

   | Enabling demo app in Workspace details | Connecting sandbox IdP | | | |

2. Navigate to Applications > Clients > Demo Portal and copy the following values:

   • Client ID

   • Client Secret

   • Issuer URL

   You will need those values later on while connecting the external token service as OIDC-based IDP in the workspace with Kong Gateway and Kong Authorizer.

Enable Token Exchange for Kong Authorizer in SecureAuth

1. Navigate to the workspace where you connected the Kong Gateway and Kong Authorizer.

2. Select Authorization > Gateways > your Kong Authorizer > 3rd Party Tokens.

3. Select ENABLE, if the token exchange is not yet enabled for the underlying OAuth authorization server in your workspace.

4. Enable the Enable exchange of third party tokens to SecureAuth access tokens option.

Add and Configure Trusted IDP - External Token Service

In this section, we will connect the external token service as IDP (token service). We will use the generic OIDC IDP template, to connect our mock external token service. In real world, you would connect any OIDC-based IDP.

1. Select Authentication > Providers> CREATE CONNECTION and expand the Third Party Providers dropdown.

2. Select OpenID Connect and proceed.

3. Add the client ID, client secret, and issuer URL of your external token service. Use name of your choice.

   For testing, use the credentials of the Demo Portal application you copied in the Configure Mock External Token Service in SecureAuth section.

4. Save.

5. In the Configuration tab for this IDP, expand the Token Exchange dropdown, enable the checkbox, and save.

6. Select Authorization > Gateways > your Kong Authorizer >> 3rd Party Tokens.

You can see that the token exchange is enabled for the configured Identity Provider. Here, you can control which IDPs are trusted for this authorizer.

Configure Kong Authorizer for Token Exchange

For detailed information about Kong Authorizer configuration, see the Configure Kong Authorizer section.

Token exchange in Kong Authorizer is controlled by the following settings in Kong Authorizer values.yaml file:

## Token exchange settings
##
tokenExchange:
  ## Enable token exchange (temporary until acp 2.0 is released)
  ##
  enabled: false

  ## Token exchange inject settings
  inject:
    ## Inject mode, defines what token should be send to the target service
    ## One of: InjectOriginalToken, InjectExchangedToken, InjectBothTokens
    ##
    mode: "InjectExchangedToken"

    headers:
      ## Original token header name
      ##
      originalToken: ""

      ## Exchanged token header name
      ##
      exchangedToken: "Authorization"

      ## strip bearer token
      ##
      stripBearer: false

As you can see, you can configure which tokens are used when accessing the APIs:

• the original external token (mode:InjectOriginalToken)

• the exchanged token coming from SecureAuth (mode:InjectExchangedToken)

• Both tokens (mode:InjectBothTokens) -- in such case, you need to configure the headers.originalToken and the headers.exchangedToken settings to define the headers used to injecting tokens.

1. Prepare the values.yaml file for your Kong Authorizer configuration.

   Example:

   clientCredentials:
     clientID: "{client-id}"
     clientSecret: "{client-secret}"
   issuerURL: "{issuer-URL}"
   kong:
     admin_url: "https://quickstart-kong-admin.kong.svc:8444"
   tokenExchange:
     enabled: true
     inject:
       ## Inject mode, defines what token should be send to the target service
       ## One of: InjectOriginalToken, InjectExchangedToken, InjectBothTokens
       ##
       mode: "InjectBothTokens"

       headers:
         ## Original token header name
         ##
         originalToken: "EXT-Token-Service"

         ## Exchanged token header name
         ##
         exchangedToken: "Authorization"

         ## strip bearer token
         ##
         stripBearer: false

   As you can see, we will use the exchanged access token to authenticate the client app, but we will also include the original token from the external token service as a value of the EXT-Token-Service header.

   If you need to learn more about the credentials like client ID, secret, or issuer URL, see the Create Kong Authorizer in SecureAuth section.

2. Apply the changes to your deployed Kong Authorizer:

   Example:

   helm upgrade --install kong-authorizer acp/kong-authorizer \
     --namespace cl-kong-authorizer \
     --values values.yaml

3. Wait for the Kong Authorizer's pod to be in the running status:

   kubectl get po --namespace cl-kong-authorizer -w

Your Kong Authorizer is now capable of exchanging access tokens.

Verify Exchanging Tokens in Kong Authorizer

If you followed this article, so far we did not check for access tokens when applying access control in Kong Authorizer. We need to create an authorization policy, apply it to one of our discovered APIs, and check if external tokens are exchanged correctly.

curl http://localhost:8000/anything/anywhere -v \
  -H "Authorization: Bearer $AT"

You should get the HTTP/1.1 200 OK response with output similar to the following:

HTTP/1.1 200 OK
< Content-Type: application/json
< Content-Length: 2720
< Connection: keep-alive
< Server: gunicorn/19.9.0
< Date: Thu, 09 Nov 2023 13:45:18 GMT
< Access-Control-Allow-Origin: *
< Access-Control-Allow-Credentials: true
< X-Kong-Upstream-Latency: 2
< X-Kong-Proxy-Latency: 527
< Via: kong/3.4.1.1-enterprise-edition
<
{
  "args": {},
  "data": "",
  "files": {},
  "form": {},
  "headers": {
    "Accept": "*/*",
    "Authorization": "Bearer eyJhbGciOiJFUzI1NiIsImtpZCI6IjI0ODkwMDYxNzU2NDcyNjQ2Mzk5NjY1NDgzMzM0ODk1NjQ4ODA0MSIsInR5cCI6IkpXVCJ9.eyJhY3IiOiIwIiwiYWlkIjoiZGVtbyIsImFtciI6WyJwd2QiXSwiYXVkIjpbImI0OWY5NTFlOWU5NDQ2YWI4MGM2YzVlOTBiNTEyYzRkIiwic3BpZmZlOi8vYWNtZS1vcmcuZXUuYXV0aHouY2xvdWRlbnRpdHkuaW8vYWNtZS1vcmcvZGVtby9kZW1vLXByb2ZpbGUiXSwiZXhwIjoxNjk5NTQxMTE3LCJpYXQiOjE2OTk1Mzc1MTcsImlkcCI6IjE5NzA4MjlkNmQxNDQ1YTA5Yzg4MjZkZjM2NTM3ZTY1IiwiaXNzIjoiaHR0cHM6Ly9hY21lLW9yZy5ldS5hdXRoei5jbG91ZGVudGl0eS5pby9hY21lLW9yZy9kZW1vIiwianRpIjoiZjFmZTU2MGYtZDJiNS00NGQ0LWE4ZjktZTJiZTJmNWExZjU5IiwibmJmIjoxNjk5NTM3NTE3LCJzY3AiOlsiZW1haWwiLCJwcm9maWxlIl0sInN0IjoicHVibGljIiwic3ViIjoiM2Q0ODNmYmE1MzgxZWM2NDIwOTAwMjYzMTU3OWJiZjRhNjA3MDgxYzk3YTE4ZmM2YzJmZjdlNDVkYTkyMzRlYiIsInRpZCI6ImFjbWUtb3JnIn0.Ax6gI9b6j5_SSWV_FzQ5B4snqjb6OCy2BwRTYVbLEYZkRzpmWPTf5DOYaosbCwRyQd1Yt0KG5W9oXV4LnuAkyg",
    "Connection": "keep-alive",
    "Ext-Token-Service": "Bearer eyJhbGciOiJFUzI1NiIsImtpZCI6IjE5NjcyODQwNDE1NzI3MjgwMjcxNjY3NTA1MjQ3NjIyOTgyOTg1MyIsInR5cCI6IkpXVCJ9.eyJhY3IiOiIxIiwiYWlkIjoiZXh0ZXJuYWwtdG9rZW4tc2VydmljZSIsImFtciI6WyJwd2QiXSwiYXVkIjpbImV4dGVybmFsLXRva2VuLXNlcnZpY2UtZGVtbyIsInNwaWZmZTovL2FjbWUtb3JnLmV1LmF1dGh6LmNsb3VkZW50aXR5LmlvL2FjbWUtb3JnL2V4dGVybmFsLXRva2VuLXNlcnZpY2UvZXh0ZXJuYWwtdG9rZW4tc2VydmljZS1wcm9maWxlIiwic3BpZmZlOi8vYWNtZS1vcmcuZXUuYXV0aHouY2xvdWRlbnRpdHkuaW8vYWNtZS1vcmcvZXh0ZXJuYWwtdG9rZW4tc2VydmljZS9leHRlcm5hbC10b2tlbi1zZXJ2aWNlLW9hdXRoMiIsInNwaWZmZTovL2FjbWUtb3JnLmV1LmF1dGh6LmNsb3VkZW50aXR5LmlvL2FjbWUtb3JnL2V4dGVybmFsLXRva2VuLXNlcnZpY2UvZXh0ZXJuYWwtdG9rZW4tc2VydmljZS11c2VyLXByaXZhY3ktY29uc2VudCJdLCJleHAiOjE2OTk1NDAyNzksImlhdCI6MTY5OTUzNjY3OSwiaWRwIjoiYWM1MjYwMTVkYjYwNDYwN2I0MzA2Nzk1YzdmYzViYjYiLCJpc3MiOiJodHRwczovL2FjbWUtb3JnLmV1LmF1dGh6LmNsb3VkZW50aXR5LmlvL2FjbWUtb3JnL2V4dGVybmFsLXRva2VuLXNlcnZpY2UiLCJqdGkiOiIxNGJiZjcyYy03NzUyLTQ4YWItYjk3Mi0zNzE5YjlkODYzMzIiLCJuYmYiOjE2OTk1MzY2NzksInNjcCI6WyJlbWFpbCIsImludHJvc3BlY3RfdG9rZW5zIiwibGlzdF9jbGllbnRzX3dpdGhfYWNjZXNzIiwibWFuYWdlX2NvbnNlbnRzIiwib2ZmbGluZV9hY2Nlc3MiLCJvcGVuaWQiLCJwcm9maWxlIiwicmV2b2tlX2NsaWVudF9hY2Nlc3MiLCJyZXZva2VfdG9rZW5zIiwidmlld19jb25zZW50cyJdLCJzdCI6InB1YmxpYyIsInN1YiI6IjVjMTg5NjVmNjVmOWI2YTFlNDFlZDI0YWUwOGZlZDk2OTU2MTE2MTVhMzBmNTZhZDlkYjRjNmUxZDg2NDA2NjgiLCJ0aWQiOiJhY21lLW9yZyJ9.DcAVK__Uw_DluVBEX59Y_GQvfox13HqkJQZZ1qvXY4g-ENyA8JptwzZLUAuH49Ad7683SYcKSb8z2E8E7s7ong",
    "Host": "httpbin.default.svc",
    "User-Agent": "curl/7.77.0",
    "X-Forwarded-Host": "localhost",
    "X-Forwarded-Path": "/anything/anywhere"
  },
  "json": null,
  "method": "GET",
  "origin": "127.0.0.1",
  "url": "http://localhost/anything/anywhere"
}
* Connection #0 to host localhost left intact

As you can see both tokens -- the original from the external token service (Ext-Token-Service) and the exchanged token from SecureAuth -- are included in the response.

1. Select Authorization > Policies > + CREATE POLICY.

2. Set the policy type to API request, language to REGO, and a name of your choice.

3. Use the following REGO policy code and save the policy:

   package acp.authz

   default allow = false

   allow {
     input.authn_ctx.aid == "{your-workspace-id}"
   }

   Remember to change the your-workspace-id variable to the value of your workspace identifier (the one with Kong Authorizer).

4. Select Authorization > API Authorization and apply the newly created policy to one of the discovered Kong Gateway APIs.

5. Call the protected APIs to check if the authorizer blocks the request without any token provided.

   curl http://localhost:8000/anything/anywhere -v

   You should receive the HTTP/1.1 403 Forbidden response.

   Check Kong Authorizer logs by adjusting and executing the below command

   kubectl logs --since=1h <kong-authorizer-pod-name> -n <kong-authorizer-namespace>

   You should see that the access request was denied because of the missing authorization header:


   time="2023-11-09T13:18:22Z" level=info msg="request validated"
    failures="[validator:\"cross-context\" message:\"missing authorization header\" details:\"failed to get data from authnCtx provider: missing authorization header\"]"
    group=example-service method=GET output || ="map[]" path=/anything/anywhere
    rule="Rule[method=GET, path=/anything.*, policyName=demo-check-workspace-id, injections=[]]"
    status=NOT_AUTHORIZED token_exchange="{true false }"

6. Navigate to the workspace you created to mock an external token service.

7. Select Overview and launch Demo Portal in the Client Applications tab.



8. Login to the application using the mock user you've added as part of the Configure Mock External Token Service in SecureAuth section (step #1).

9. Consent to data sharing.

10. Go to the Access Token tab, copy the raw token, and export it in your terminal:

    export AT={your-raw-token}

11. Call the protected API once again including the access token as the value of the Authorization: Bearer ${access-token} header.

12. Check Kong Authorizer logs by adjusting and executing the below command

    kubectl logs --since=1h <kong-authorizer-pod-name> -n <kong-authorizer-namespace>

    You should see the log message similar to the below:

    time="2023-11-09T13:45:17Z" level=info msg="request validated" failures="[]" group=example-service method=GET output="map[]" path=/anything/anywhere rule="Rule[method=GET, path=/anything.*, policyName=demo-check-workspace-id, injections=[]]" status=AUTHORIZED token_exchange="{true true }"

    You can see that the tokens were indeed exchanged in the authorizer and the Check Workspace ID was passed even though the original token was minted by a different workspace (the exchanged token was used with a correct workspace ID).

Caching Exchanged Tokens

SecureAuth Kong Authorizer caches exchanged access tokens for a defined time period.

To adjust the amount of tokens cached and how long they stay cached, configure the cache.ttl and cache.max_size settings for your authorizer:

token_exchange:
    enabled: true # enable token exchange
    # cache
    cache:
        ttl: 1m0s # ttl
        max_size: 1000 # max size

When the cache's max size is reached, the least recently used token is revoked.

When ready, pass the configuration as part of the extraConfig section for your authorizer deployment values.yaml file and redeploy the authorizer. See example:

extraConfig:
  token_exchange:
    cache:
        ttl: 1m0s # ttl
        max_size: 1000 # max size
