Microsoft

Set up Microsoft as a social login provider in SecureAuth Connect so users can sign in with their Microsoft account.

Register Microsoft as a provider

1. In your workspace, go to Authentication > Providers.

2. Click Create Connection.

3. Filter by Social Providers and select Microsoft.

4. Choose a registration mode:

   Mode	Description
   Embedded	Uses a client application registered by SecureAuth. No developer portal registration required.
   Bring your Own	Uses a client application registered by your organization. Requires registering an application in the Microsoft Entra admin center to obtain an Application (Client) ID and Client Secret.

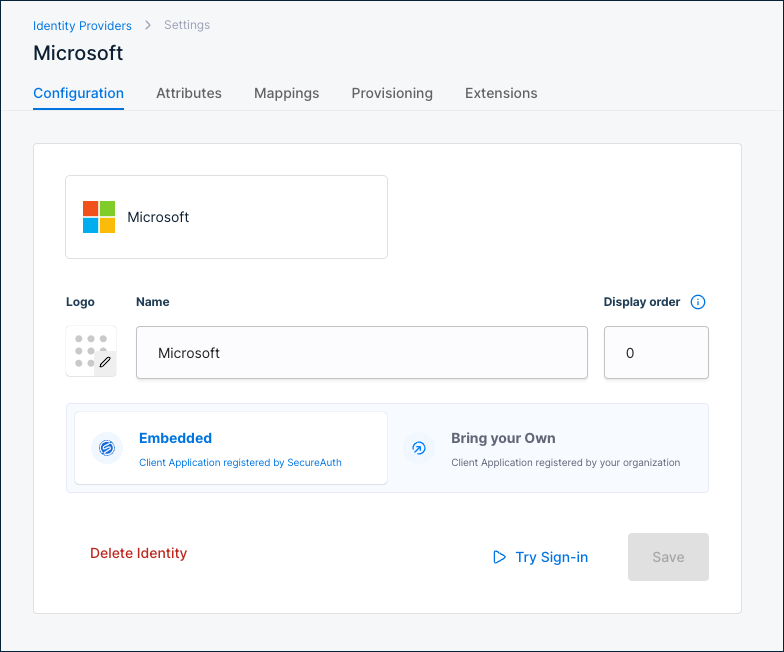

Configuration

Setting	Description
Name	Display name for this provider. Default: Microsoft.
Display order	Controls the position of this provider on the sign-in page. Default: 0.

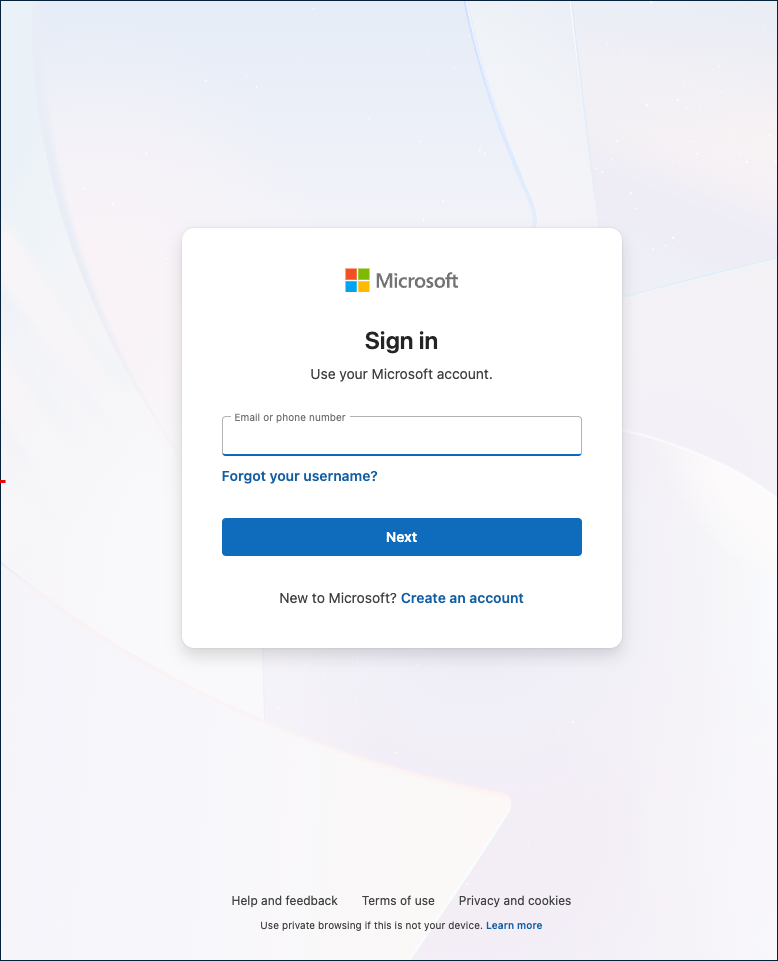

Use Try Sign-in to test the Microsoft sign-in flow. Use Delete Identity to remove this provider.

Attributes

Microsoft returns the following attributes after authentication:

Connector name	Friendly name	Data type	Scope
name	Name	String	ID token
email	Email	String	ID token
preferred_username	Preferred username	String	ID token
givenName	Given name	String	User Info
surname	Surname	String	User Info
userPrincipalName	User principal name	String	User Info
displayName	Display name	String	User Info
preferred_language	Preferred language	String	User Info
mobilePhone	Mobile phone	String	User Info
jobTitle	Job title	String	User Info

Microsoft returns attributes from both ID token and User Info scopes. It provides the richest set of business-context attributes among social providers, including jobTitle, mobilePhone, preferred_language, and userPrincipalName.

To add custom attributes, click + Add attribute.

Mappings

Default attribute mappings from Microsoft to the SecureAuth authentication context:

Source	Microsoft source name	SecureAuth target name
ID token	Name	Name
ID token	Email	Email
ID token	Preferred username	The primary username that represents the user
User Info	Given name	Given name
User Info	Surname	Family name
User Info	Mobile phone	Phone

To customize, click + Add mapping or + Add static mapping.

Provisioning

Provisioning controls what happens when a user authenticates through Microsoft.

Disabled

Users are not persisted in the user store. Authentication succeeds but no user record is created.

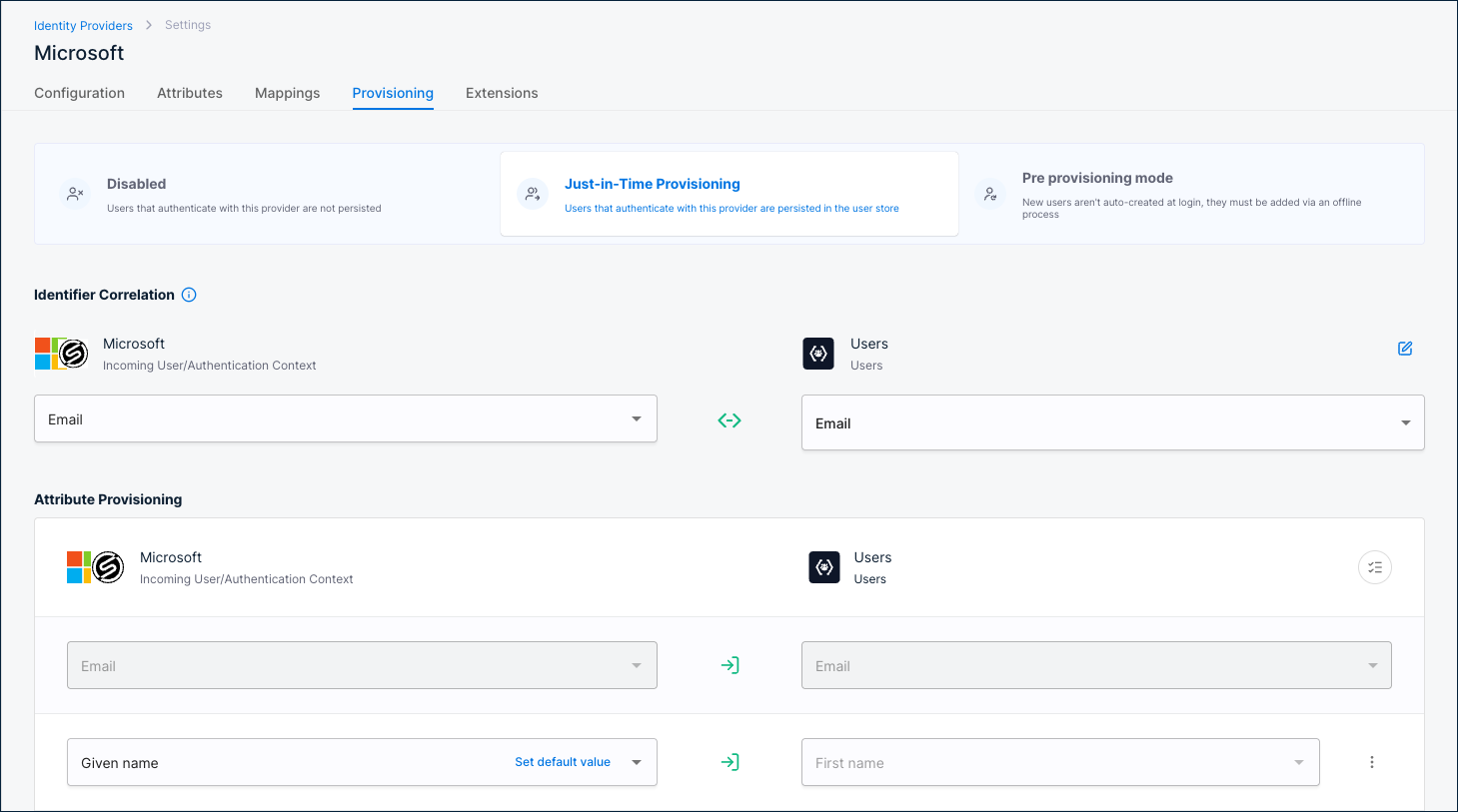

Just-in-Time Provisioning

Users are persisted in the user store on first login.

Identifier Correlation
Maps the incoming Microsoft identity to an existing user. Default: Microsoft Email ↔ Users Email.

Attribute Provisioning
Maps Microsoft attributes to user profile fields. Defaults:

• Email → Email
• Given name → First name
• Family name → Last name

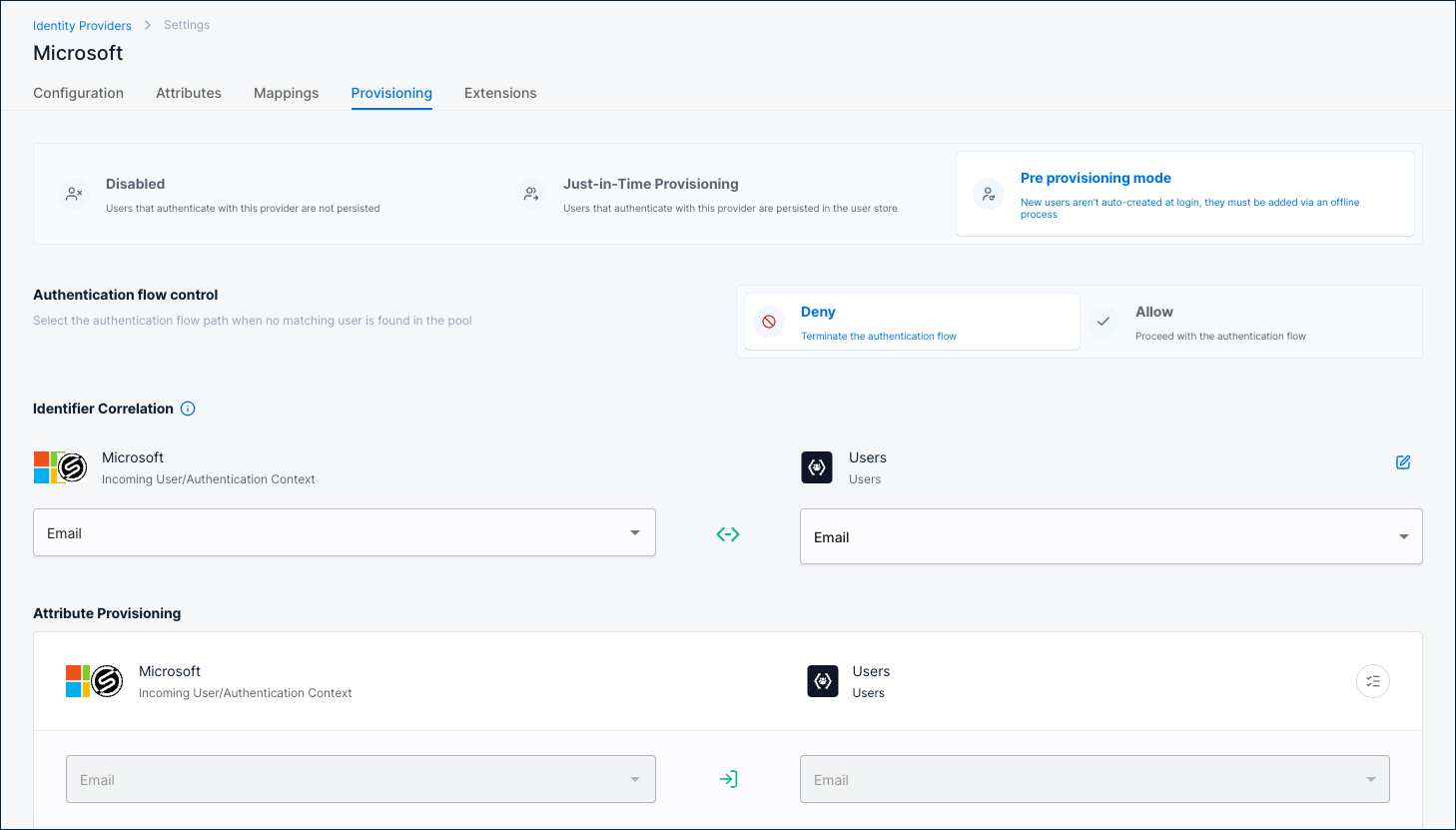

Pre provisioning mode

Users must already exist in the user store before they can authenticate. New users are not auto-created at login; they must be added via an offline process.

Authentication flow control
Select what happens when no matching user is found:

• Deny – Terminate the authentication flow.
• Allow – Proceed with the authentication flow.

Identifier Correlation
Maps the incoming Microsoft identity to an existing user. Default: Microsoft Email ↔ Users Email.

Attribute Provisioning
Maps Microsoft attributes to user profile fields. Defaults:

• Email → Email
• Given name → First name
• Family name → Last name

Extensions

Extension	Description
Post Authentication script	A server-side script that runs after Microsoft authentication completes. Click Manage Script to configure.
Post Authentication application	A custom application that receives a callback after Microsoft authentication completes. Click Manage Custom App to configure.

See also

• Social login
