Adding Outgoing SAML Assertion Attributes Sent to Service Providers

Control which SAML IDP Attributes are included in the outgoing SAML Assertion sent to SAML Service Providers.

Prerequisites​

Add Outgoing SAML Assertion Attributes​

  1. Select OAuth > Tokens & Claims > Claims > SAML Assertion Attributes > + ADD CLAIM.

    Define Outgoing SAML assertion attribute

  2. Fill in the Add claim form with and select Add.

    ParameterDescription
    Claim nameClaim name in SecureAuth.
    Source typeHow the source value for the claim is retrieved. Authentication context is a set of attributes mapped from data sent by IDP acting on behalf of the user. Client means an application registered in SecureAuth. Workspace provides metadata about the workspace.
    Source pathSpecific attribute available in the source.
    Output source pathExact attribute name representing this claim in the token.
    SAML NameSAML attribute name issued with your Service Provider's assertion, for example urn:oid:2.5.4.10.
    SAML Attribute FormatSAML attribute format, for example urn:oasis:names:tc:SAML:2.0:attrname-format:uri.

The attribute will be included in the SAML Assertion sent to service providers.

Consider the following example:

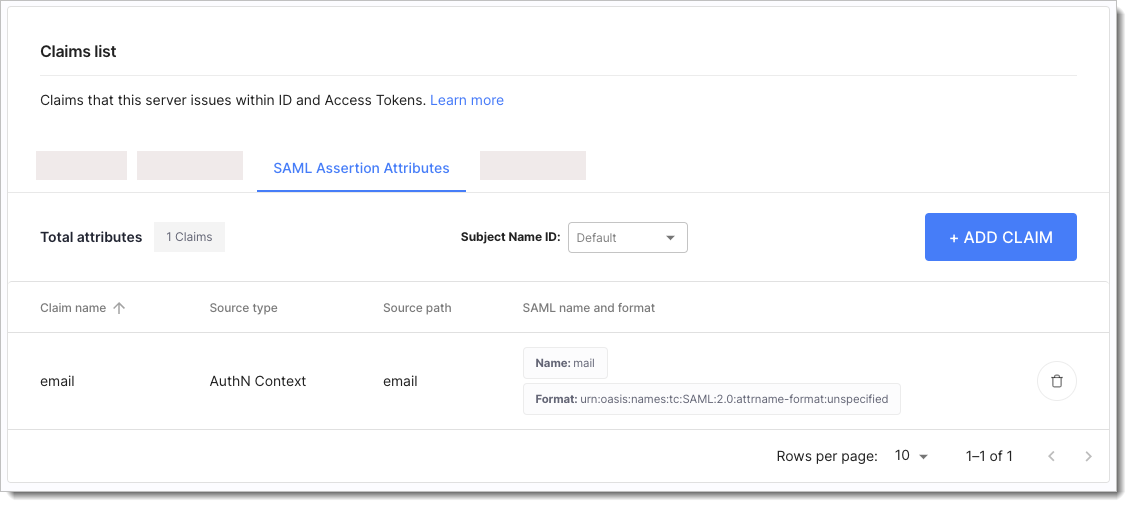

SAML Assertion Example

If we add an email attribute with source type set to AuthN Context, source path set to email, SAML name set to mail and with the SAML format set to urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified, the outgoing SAML Assertion sent to the Service Provider has the following attribute included:

<saml2:AttributeStatement>
   <saml2:Attribute Name="mail" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified">
      <saml2:AttributeValue
            xmlns:xs="http://www.w3.org/2001/XMLSchema"
            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">johndoe@example.com
      </saml2:AttributeValue>
   </saml2:Attribute>
</saml2:AttributeStatement>

Next Steps​

If your SAML IDP enables users to sign into OAuth-based client applications, be sure to define Token Claims as well.
